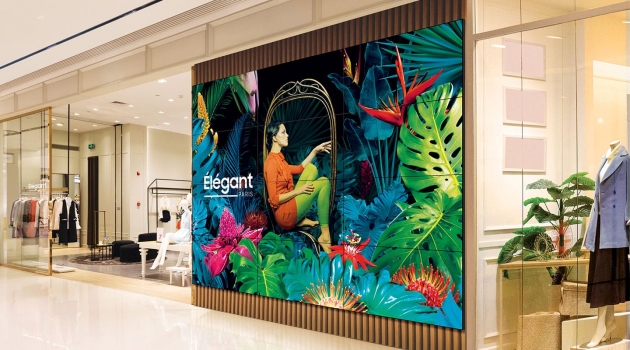

Samsung VM55T-E 窄邊框電視牆
產品說明
產 品 介 紹
產 品 詳 細 規 格
左右尚有資訊規格 VM55T-E
| Panel | |
| Diagonal Size | 55" |
| Type | IPS |
| Resolution | 1920*1080 (Full HD) |
| Pixel Pitch(mm) | 0.63mm(H)*0.63mm(V) |
| Active Display Area(mm) | 1209.6 * 680.4 mm |
| Brightness(Typ.) | 500 nit |
| Contrast Ratio | 1200:1 |
| Viewing Angle(H/V) | 178/178 |
| Response Time(G-to-G) | 8ms |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 28% |
| Display | |
| Haze | 28% |
| Dynamic C/R | 500,000:1 |
| H-Scanning Frequency | 57.3kHz ~ 70kHz |
| V-Scanning Frequency | 48Hz ~ 75Hz |
| Maximum Pixel Frequency | 77MHz |
| Input | |
| RGB | DVI-D, Display Port 1.2 |
| Video | HDMI 2.0 (2) |
| HDCP | HDCP 2.2 |
| Audio | Stereo mini Jack |
| USB | Only F/W upgrade |
| Output | |
| RGB | DP1.2(Loop-out) |
| Audio | Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| External Sensor | Detachable type(IR) |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Power Consumption | |
| Max[W/h] | 242 |
| Typical[W/h] | 90 |
| BTU(Max) | 825 |
| Sleep mode | less than 0.5W |
| Off mode | less than 0.5W |
| Dimension (mm) | |
| Set | 1211.5 x 682.3 x 70 |
| Package | 1398 x 844 x 257 |
| Weight (kg) | |
| Set | 19.4 |
| Package | 27.6 |
| VESA Mount (mm) | 600 * 400 (mm) |
| Bezel Width (mm) | 0.9mm (Even) |
| Operation | |
| Operating Temperature | 0℃~40℃ |
| Humidity | 10%~80% |
| Feature | |
| Key Features | Extreme Narrow Bezel |
| Orientation | N/A |
| Special Features | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A |
| Certification | |
| Safety | UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 |
| EMC | FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012 |
| IP Rating | IP5X |
| Accessory | |
| Included | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR |
| Optional | |
| Stand | N/A |
| Mount | WMN-55VD |
| Specialty | N/A |
| Media Player | |
| Media Player | Signage player box |
