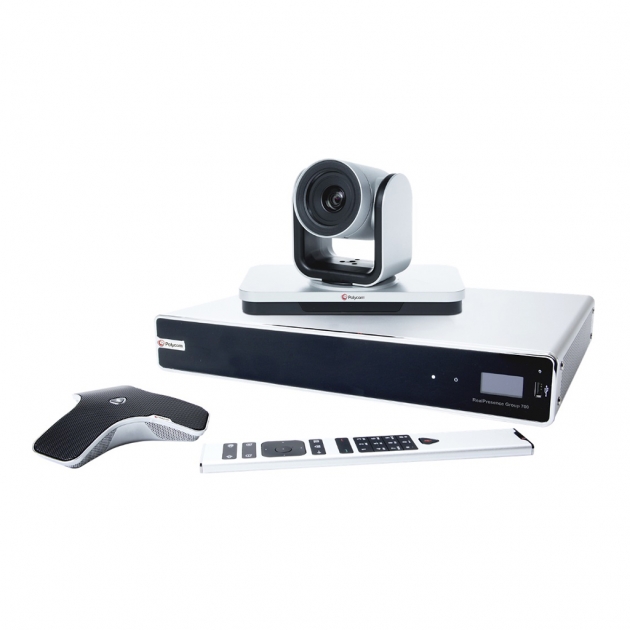

Poly GROUP 700 視訊會議系統(硬體式)
產品說明
產 品 介 紹
產品詳細規格
| Package includes | • RealPresence Group 700 codec |
| • RealPresence Group Microphone Array | |
| • EagleEye IV camera | |
| • Cable bundle | |
| • Remote control | |
| • Rack (19”) mounting ears | |
| Video standards and protocols | • H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV |
| • H.239/Polycom® People+Content™ | |
| • H.263 & H.264 Video error concealment | |
| Video input | • 2 x HDCI |
| • 3 x HDMI 1.4 | |
| • 1 x YPbPr component | |
| • 1 x dual RCA composite | |
| • 1 x VGA | |
| Video out | • 3 x HDMI 1.3 |
| • 3 x VGA | |
| People video resolution | • 1080p, 60 fps from 1740 Kbps |
| • 1080p, 30 fps from 1024 Kbps | |
| • 720p, 60 fps from 832 Kbps | |
| • 720p, 30 fps from 512 Kbps | |
| • 4SIF/4CIF, 60 fps from 512 Kbps | |
| • 4SIF/4CIF, 30 fps from 128 Kbps | |
| • SIF (352 x 240), CIF (352 x 288) from 64 Kbps | |
| • QCIF (176 x 144) from 64 Kbps | |
| • w288p from 128 Kbps | |
| • w448p from 384 Kbps | |
| • w576p from 512 Kbps | |
| Content video resolution | • Input |
| - HD (1920 x 1080i) | |
| - HD (1920 x 1080p) | |
| - WSXGA+ (1680 x 1050) | |
| - UXGA (1600 x 1200) | |
| - SXGA (1280 x 1024) | |
| - WXGA (1280 x 768) | |
| (1024 x 768) | |
| - SVGA (800 x 600) | |
| • Output | |
| - WUXGA (1920 x 1200) | |
| - HD (1920 x 1080) | |
| - WSXGA+ (1680 x 1050) | |
| - SXGA+ (1400 x 1050) | |
| - SXGA (1280 x 1024) | |
| - HD (1280 x 720) | |
| - XGA (1024 x 768) | |
| - VGA (640 x 480) | |
| • Content Frame Rate | |
| - 5–60 fps (up to 1080p resolution at 60 fps) | |
| • Content Sharing: People+Content™ and People+Content™ IP | |
| Audio input | • 2 x RealPresence Group microphone array input ports (supporting a total of 4 microphone arrays) |
| • USB headset support | |
| • 2 x HDCI (camera) | |
| • 3 x HDMI | |
| • 2 x RCA line-in | |
| Audio output | • 1 x HDMI (to in-room audio system) |
| • 1 x HDMI (to conference recording device) | |
| • USB headset support | |
| • 1 x RCA pair stereo line-out | |
| Other interfaces | • 2 x USB 3.0 (back) |
| • 1 x USB 2.0 (front) | |
| • 1 x RS-232 DB9 | |
| Audio standards and protocols | • 22 kHz bandwidth with Polycom® Siren™ 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode) |
| • 14 kHz bandwidth with Polycom® Siren™ 14 technology, G.722.1 Annex C | |
| • 7 kHz bandwidth with G.722, G.722.1 | |
| • 3.4 kHz bandwidth with G.711, G.728, G.729A | |
| Polycom® Constant Clarity™ technology | • Automatic gain control |
| • Automatic noise suppression | |
| • Keyboard noise reduction | |
| • Polycom® NoiseBlock™ technology | |
| • Polycom® Acoustic Fence™ technology | |
| • Live music mode | |
| • Instant adaptation echo cancellation | |
| • Audio error concealment | |
| • Polycom® Siren™ Lost Packet Recovery™ (LPR™) technology | |
| • Polycom® StereoSurround™ technology | |
| Other supported standards | • H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460 |
| • BFCP (RFC 4582) | |
| • TIP | |
| Network | • IPv4 and IPv6 support |
| • 2 x 10/100/1G Ethernet Switch | |
| • Auto-MDIX | |
| • H.323 and/or SIP up to 6 Mbps | |
| • Polycom® Lost Packet Recovery™ (LPR™) technology | |
| • Reconfigurable MTU size | |
| • RS232 with API support | |
| • Microsoft® Office Communications Server integration | |
| • Microsoft® ICE support | |
| • Microsoft Lync and Skype for Business certification, including Skype for Business Online / Office 365 | |
| • IBM® Sametime™ support | |
| • Zoom Meetings interoperability | |
| Security | • US DoD UC APL Certified (see the Polycom US Federal Government Accreditation site for details) |
| • Media Encryption (H.323, SIP): AES-128, AES-256 | |
| • H.235.6 support | |
| • Authenticated access to admin menus, web interface, and telnet API | |
| • FIPS 140-2 Validated Cryptography (Validation Certificate #1747) | |
| • PKI/Certificate Management: | |
| - SSL 3.0, TLS 1.0, 1.1, 1.2 | |
| - Self-signed and CA-signed certificate support | |
| - CRL and OCSP-based certificate revocation checking | |
| • Network intrusion detection system | |
| • Local account password policy configuration | |
| • Security profiles | |
| • Web UI/SNMP Whitelists | |
| • Local account and login port lockout | |
| Options | • Polycom® Pano™ |
| • Polycom® RealPresence® Touch | |
| • Polycom® EagleEye™ Producer | |
| • Polycom® EagleEye™ Director II | |
| • Polycom® SoundStation® IP 7000 conference phone integration | |
| • Polycom® SoundStructure® integration | |
| Software options | • Skype for Business and Lync Integration (including Skype for Business Online / Office 365) |
| • TIP interoperability | |
| • 1080p license, providing up to 1080p60 for people and content | |
| • Multipoint license for up to 8 sites at 720p30, or 4 sites at 1080p30 | |
| Electrical | • Auto sensing power supply |
| Typical operating voltage/power | • 85VA @ 120V @ 60 Hz |
| • 85VA @ 230V @ 50/60 Hz | |
| • Typical BTU/h: 280 | |
| Environmental specification | • Operating temperature: 0 to 40 °C |
| • Operating humidity: 15 to 80% | |
| • Non-operating temperature: -40 to 70 °C | |
| • Non-operating humidity (non-condensing): 5 to 95% | |
| • Maximum altitude: 10,000 ft | |
| Physical characteristics | • RealPresence Group 700 base box |
| - 17.2” H x 2.6” W x 12.8” D | |
| - 11.45 lbs |
